Test For Changing Position Of Each Ignition Coil

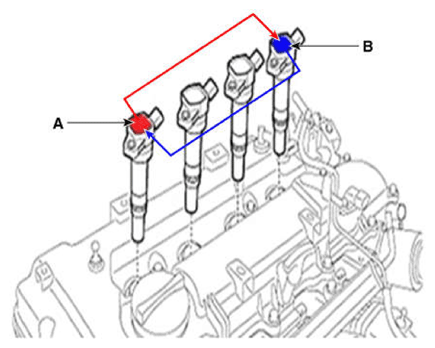

  1. Ignition coil w/misfire code
  2. Ignition coil w/o misfire code
NOTE: Do not move with spark plug at the same time (move the ignition coil only)
G13306997Courtesy of KIA MOTORS AMERICA, INC.

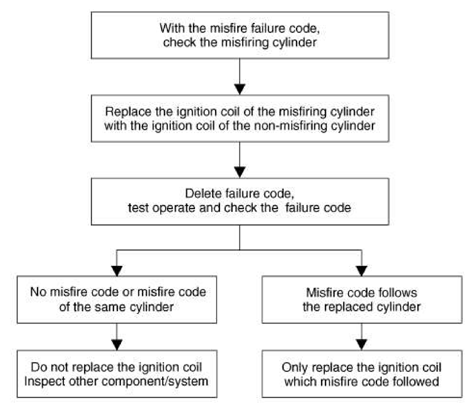

G13306998Courtesy of KIA MOTORS AMERICA, INC.
