Removal & Installation

WARNING: This page is about a different variant/trim than selected.

Turn the ignition switch OFF and disconnect the battery (-) terminal.
Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

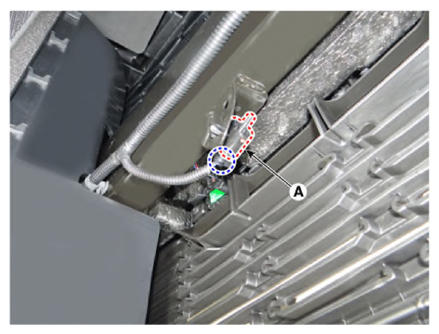

Disconnect the connector and then remove the ambient temperature sensor (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
NOTE: Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
