Removal & Installation
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the air cleaner assembly and air intake hose.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the battery.
(Refer to Engine Electrical System - "BATTERY ")

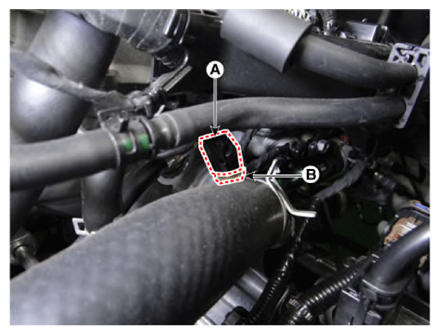

- Disconnect the engine coolant temperature sensor connector (A).
- Remove the engine coolant temperature sensor (B).
Engine Coolant Temperature Sensor:
29.4 - 39.2 N.m (3.0 - 4.0 kgf.m, 21.7 - 28.9 lb.ft)
CAUTION: Note that engine coolant may be flowed out from the water temperature control assembly when removing the sensor. - Install in the reverse order of removal.
- Fill with engine coolant.
(Refer to Engine Mechanical System - "COOLANT ")
NOTE:- Install the component with the specified torques.
- Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
- Apply the engine coolant to the O-ring.
- Insert the sensor in the installation hole and be careful not to damage.
