Removal & Installation
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

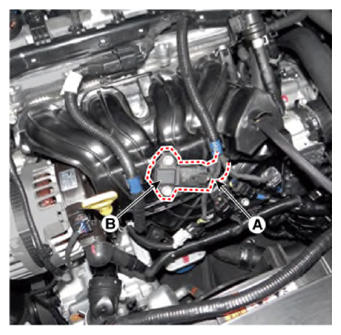

- Disconnect the manifold absolute pressure sensor connector (A).
- Remove the sensor (B) from the Intake manifold by loosening the mounting bolts.
Intake air temperature sensor mounting bolt:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
- Install in the reverse order of removal.NOTE:
- Tighten the component with the specified torques.
- Note that internal damage may occur when the component is dropped. If the component has been dropped, if it is damaged inspect before installing.
- Insert the sensor in the installation hole and be careful not to damage.
