Repair Procedures: Disassembly

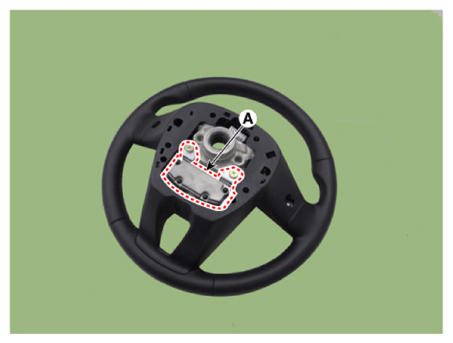

  1. Loosen the screws and then remove the dynamic damper (A).
    G13304630Courtesy of KIA MOTORS AMERICA, INC.

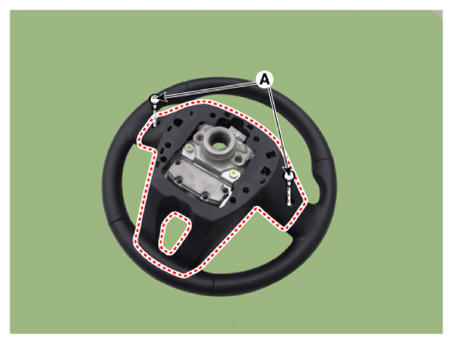

  2. Loosen the screws (A) from the lower cover.
    G13304631Courtesy of KIA MOTORS AMERICA, INC.

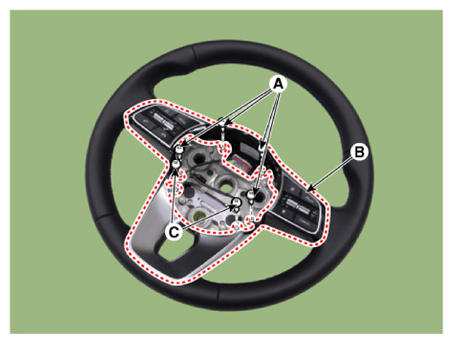

  3. Loosen the screws (A) and then disconnect the remote control switch (B).
  4. Loosen the screws (C) from the bezel.
    G13304632Courtesy of KIA MOTORS AMERICA, INC.

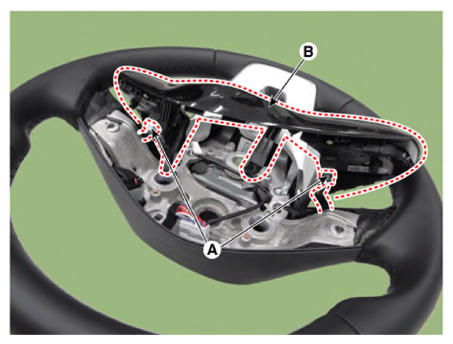

  5. Disconnect the connectors (A) and then remove the remote control switch (B).
    G13304633Courtesy of KIA MOTORS AMERICA, INC.

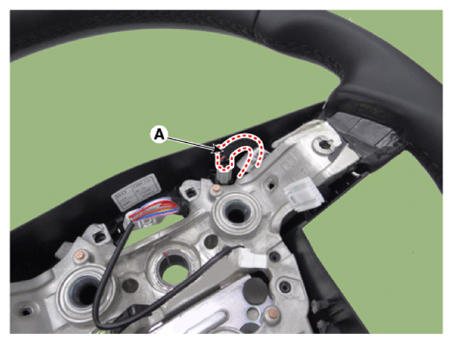

  6. Disconnect the heated steering wheel connector (A).
    G13304634Courtesy of KIA MOTORS AMERICA, INC.

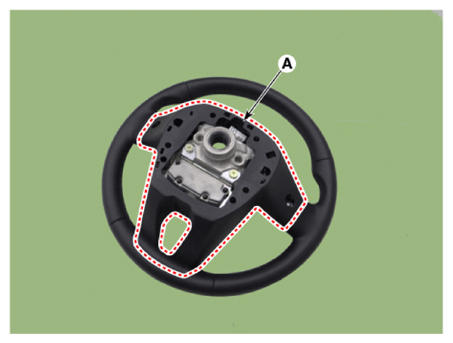

  7. Remove the lower cover (A).
    G13304635Courtesy of KIA MOTORS AMERICA, INC.

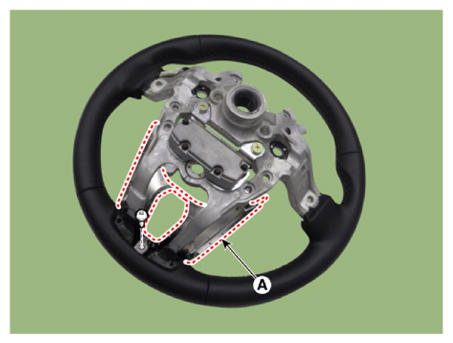

  8. Loosen the screws and then remove the bezel (A).
    G13304636Courtesy of KIA MOTORS AMERICA, INC.
  9. Assemble in the reverse order of disassembly.
