Repair Procedures: Installation

NOTE:
  • Intelligent Variable Transmission (IVT) is composed of delicate components. Be careful not to cause any damage on the component when assembling and disassembling.
  • Maintain clean condition so that foreign substance does not get into the Intelligent Variable Transmission (IVT).
  • Use a coated apron, latex gloves, and stainless tray to prevent foreign substance from getting into the Intelligent Variable Transmission (IVT).

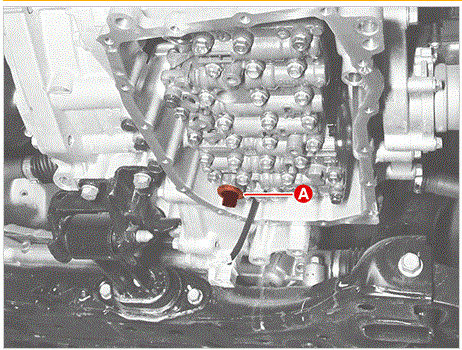

  1. Install the pressure sensor (A).

    Tightening torque:

    11.8 - 13.7 N-m (1.2 - 1.4 kgf-m, 8.7 - 10.2 lb-ft)

    G00599939Courtesy of KIA MOTORS AMERICA, INC.

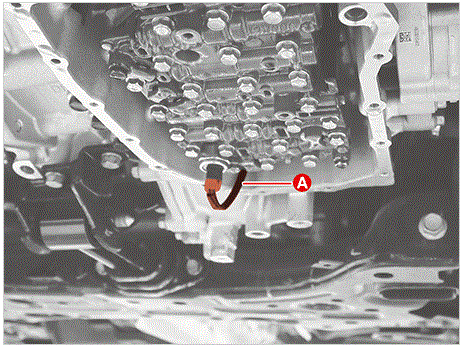

  2. Connect the pressure sensor connector (A).
    G00599940Courtesy of KIA MOTORS AMERICA, INC.

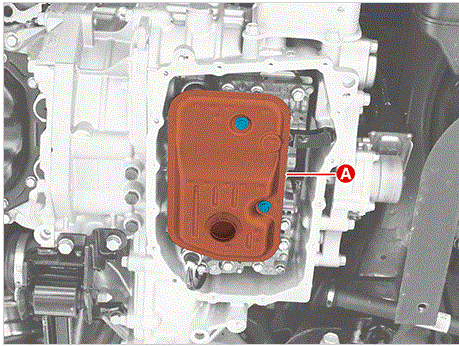

  3. Install the IVTF filter (A).

    Tightening torque:

    9.8 - 11.8 N-m (1.0 - 1.2 kgf-m, 7.2 - 8.7 lb-ft)

    G00599941Courtesy of KIA MOTORS AMERICA, INC.
  4. Install the valve body cover in the following order:
    1. Remove foreign substances from the surface of the IVT case and valve body cover.

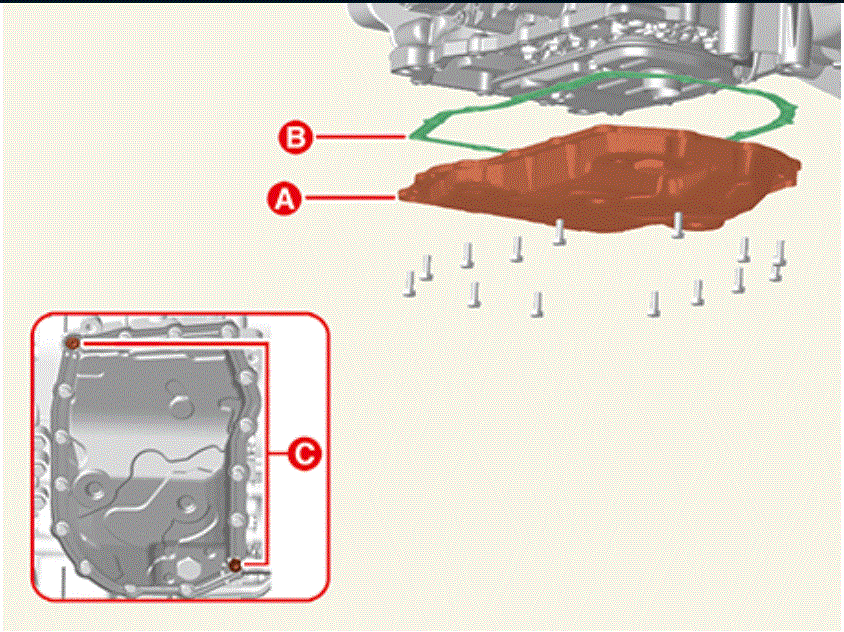

    2. Install the valve body cover (A) and gasket (B), and temporarily tighten the bolts except reference hole (C).
      G00599942Courtesy of KIA MOTORS AMERICA, INC.
      NOTE:
      • The existing valve body cover gasket must be replaced with a new one (do not reuse).
      • Tighten the bolts by hand to adjust the position of the gasket.

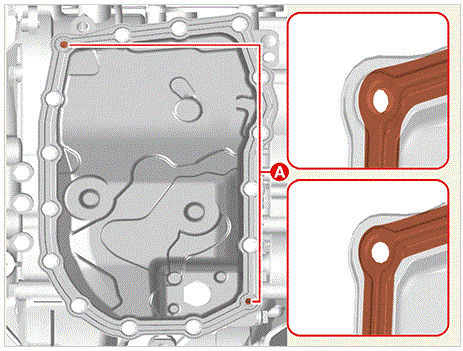

    3. Visually check the reference hole (A) to align the valve body cover hole with the gasket hole.
      G00599943Courtesy of KIA MOTORS AMERICA, INC.
      NOTE: Tightening the bolts without aligning the valve body hole with the gasket hole may result in any IVTF leaks.
    4. Tighten the remaining valve body cover mounting bolts except for the reference hole to the tightening torque.

      Tightening torque:

      9.8 - 11.8 N-m (1.0 - 1.2 kgf-m, 7.2 - 8.7 lb-ft)

      NOTE: Tighten the bolts diagonally alternately so that pressure is evenly applied.

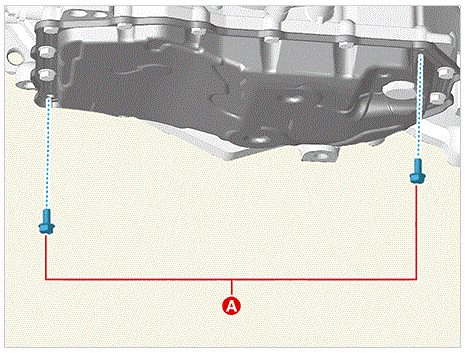

    5. Check that the valve body cover hole and gasket hole are properly aligned through the reference hole and tighten the bolt (A) to the reference hole.

      Tightening torque:

      9.8 - 11.8 N-m (1.0 - 1.2 kgf-m, 7.2 - 8.7 lb-ft)

      G00599944Courtesy of KIA MOTORS AMERICA, INC.
    6. Check the valve body for damage (crack, deformation, etc.) and clean the IVTF around the mounting area.
  5. Check the IVTF level after refilling the intelligent variable transmission with fluid.

    (Refer to Hydraulic System - FLUID

  6. Check for leakage of IVT fluid from hose connection during engine start.
  7. Install the under cover.

    Refer to Engine Mechanical System -ENGINE ROOM UNDER COVER

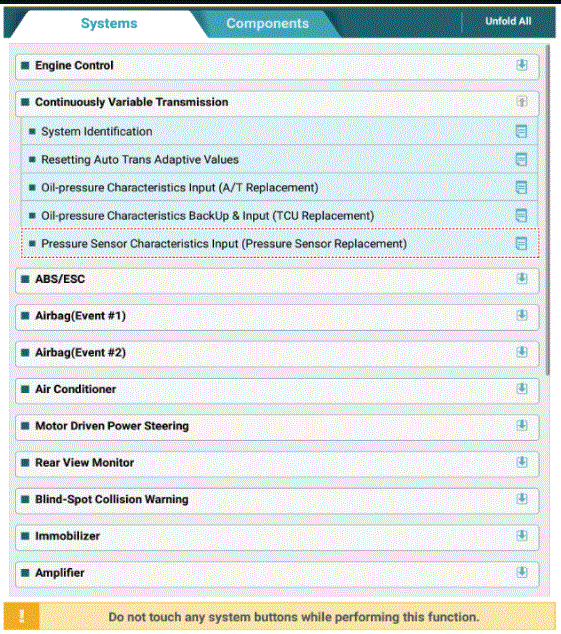

  8. Perform the procedure below using the KDS after replacing the pressure sensor with a new one.
    G00599945Courtesy of KIA MOTORS AMERICA, INC.
