Repair Procedures: Installation

  1. Install in the reverse order of removal.

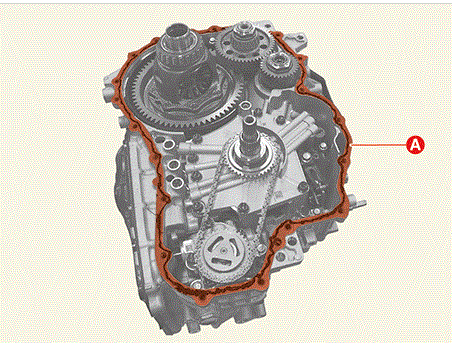

    NOTE: Apply sealant on the IVT case side (A).

    Standard sealant :

    Bead diameter :

    G00668243Courtesy of KIA MOTORS AMERICA, INC.
  2. Check the IVTF level after refilling the IVT with fluid.

    (Refer to Transmission Gear Oil - "Replacement")
