Repair Procedures: Removal

Move the shift lever to 4th gear.
Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")

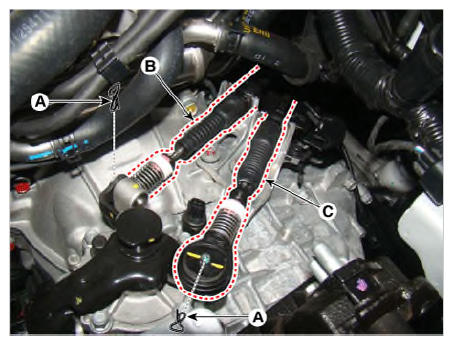

Remove the control cable from the control shaft after removing the snap pins (A).

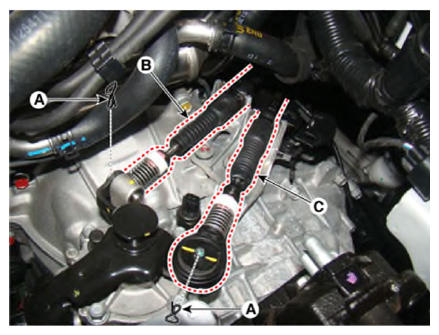

Remove the shift cable (B) and select cable (C).

Courtesy of KIA MOTORS AMERICA, INC.

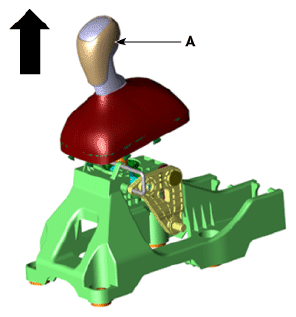

Remove the knob (A) by pulling it in the direction of upward after removing the boots from the console upper cover.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

Remove the select cable.

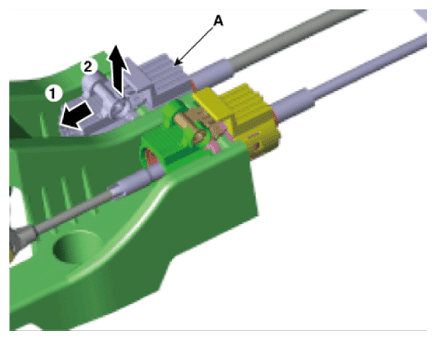

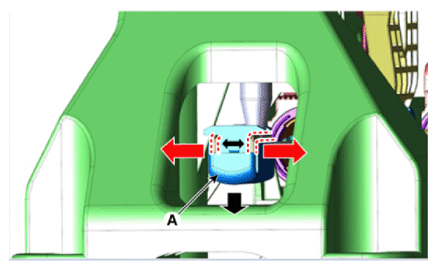

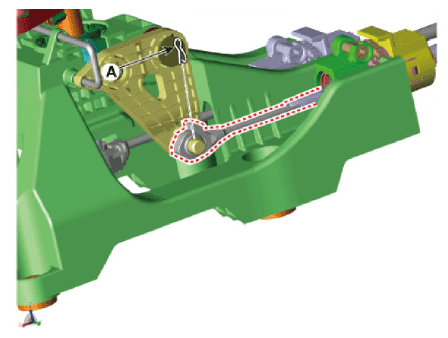

Remove the snap pin (A).

Courtesy of KIA MOTORS AMERICA, INC.

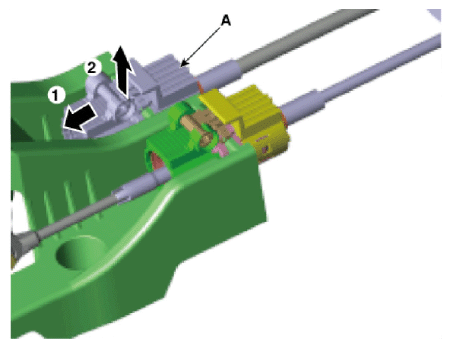

Remove the select cable (A) from the shift lever.

Courtesy of KIA MOTORS AMERICA, INC.

Remove the shift cable.

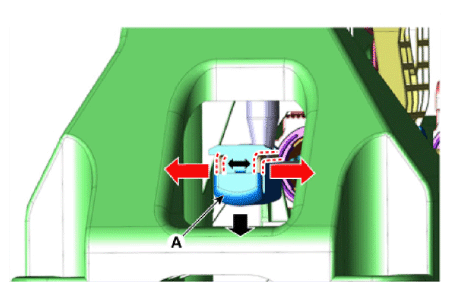

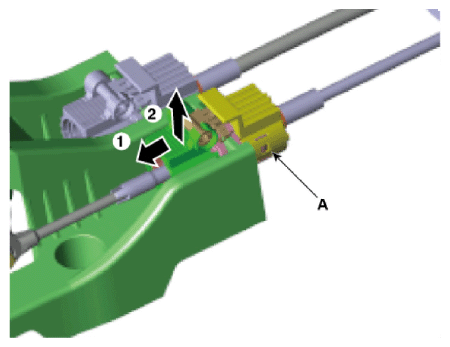

Remove the snap pin (A) in the direction of the arrow.

Courtesy of KIA MOTORS AMERICA, INC.

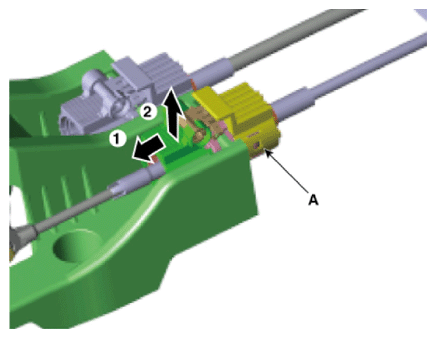

Remove the shift cable (A) from the shift lever.

Courtesy of KIA MOTORS AMERICA, INC.

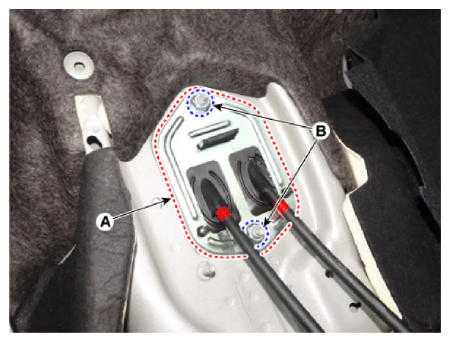

Remove the shift cable retainer (A) after loosening the nuts (B). Then, remove the shift cable by pulling it toward the vehicle interior.
