Repair Procedures: Removal

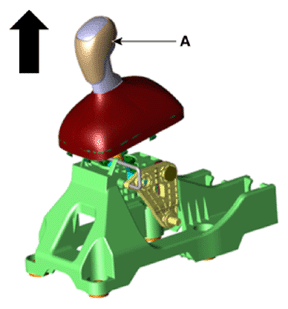

  1. Remove the knob (A) by pulling it in the direction of upward after removing the boots from the console upper cover.
    G13307280Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

  3. Remove the select cable.

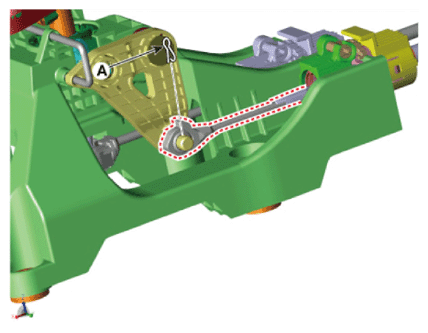

    1. Remove the snap pin (A).
      G13307281Courtesy of KIA MOTORS AMERICA, INC.

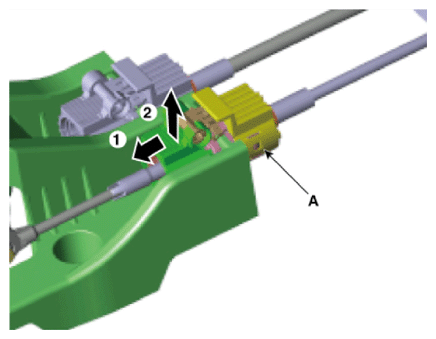

    2. Remove the select cable (A) from the shift lever.
    G13307282Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the shift cable.

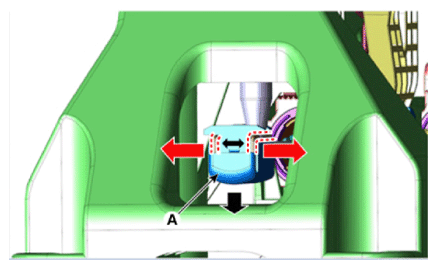

    1. Remove the snap pin (A) in the direction of the arrow.
      G13307283Courtesy of KIA MOTORS AMERICA, INC.

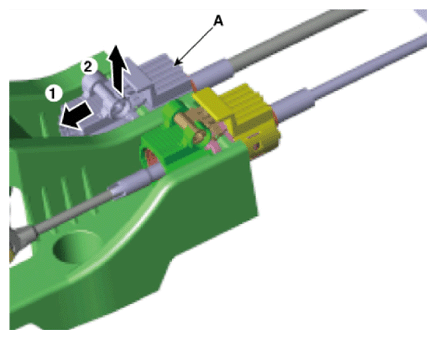

    2. Remove the shift cable (A) from the shift lever.
      G13307284Courtesy of KIA MOTORS AMERICA, INC.

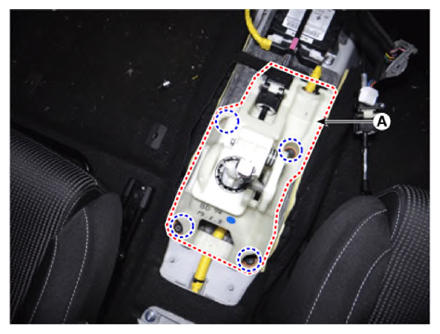

  5. Remove the shift lever assembly (A) after loosening the mounting bolts.

    Tightening torque:

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

    G13307285Courtesy of KIA MOTORS AMERICA, INC.
