Components And Components Location: Components

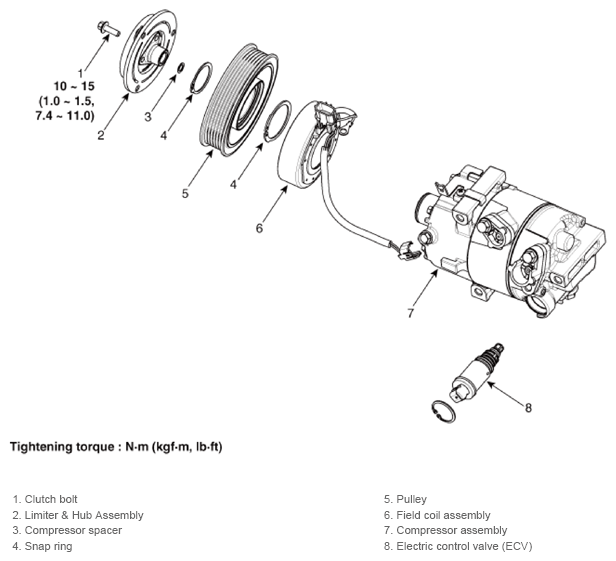

Fig 1: Compressor Components With Torque Specification
G13306376Courtesy of KIA MOTORS AMERICA, INC.

Tightening torque: N.m (kgf.m, lb.ft)
