Repair Procedures: Removal

  1. Disconnect the battery negative terminal.
  2. Remove the engine cover.

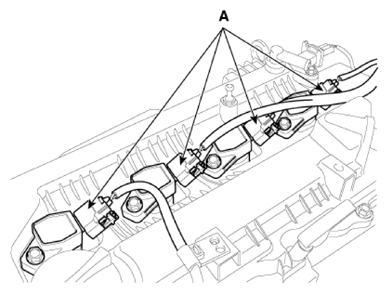

  3. Disconnect the ignition coil connectors (A).
    G13306999Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

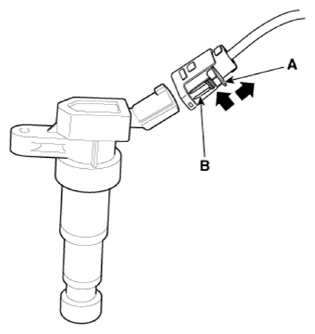

    • When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
    G13307000Courtesy of KIA MOTORS AMERICA, INC.

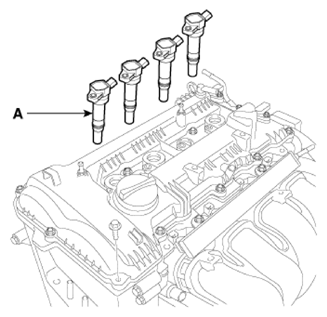

  4. Remove the ignition coil (A).
G13307001Courtesy of KIA MOTORS AMERICA, INC.
