Components Location

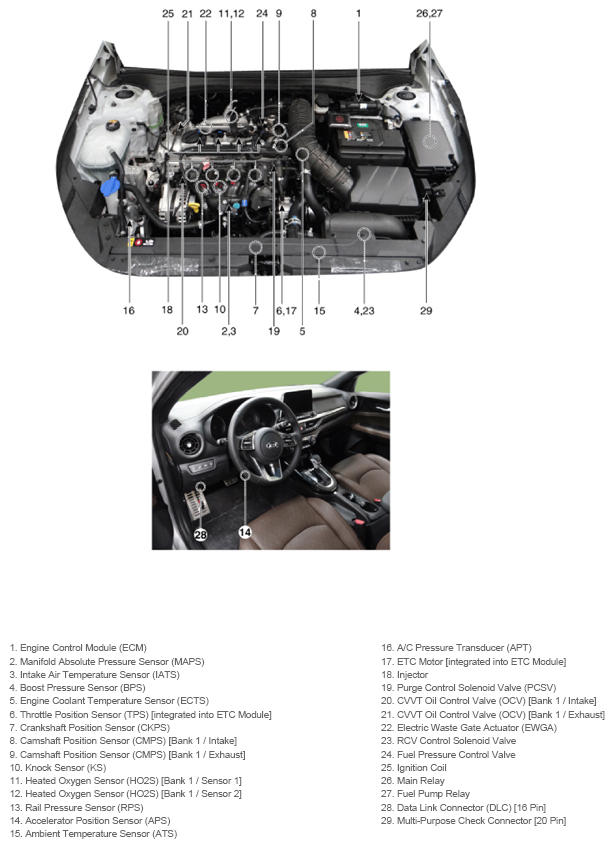

G13303770Courtesy of KIA MOTORS AMERICA, INC.

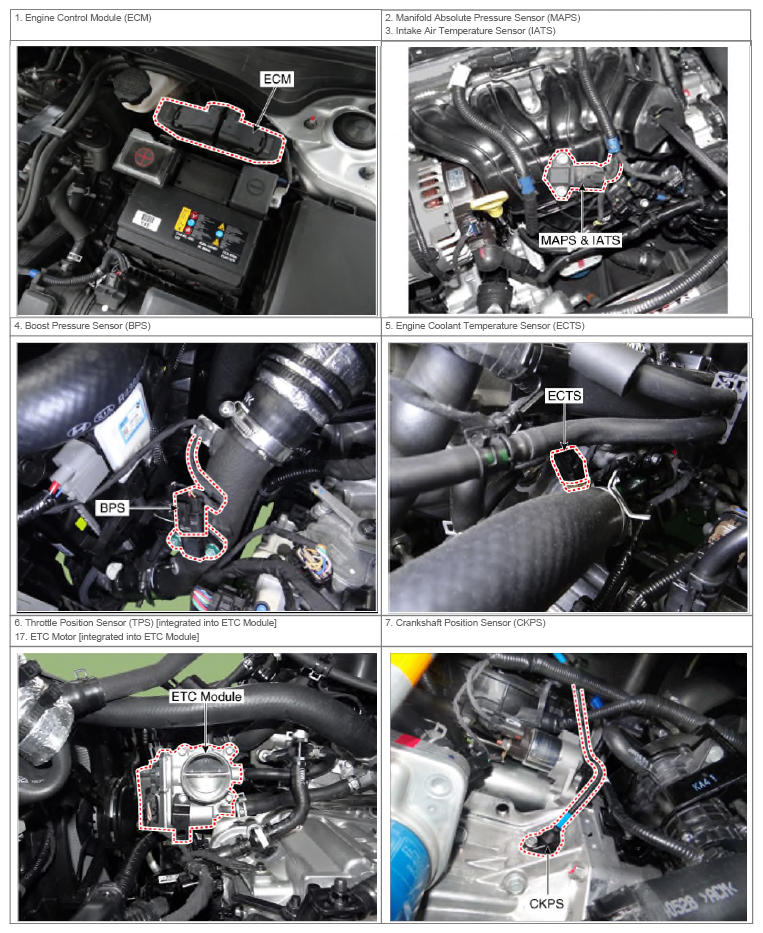

G13303771Courtesy of KIA MOTORS AMERICA, INC.

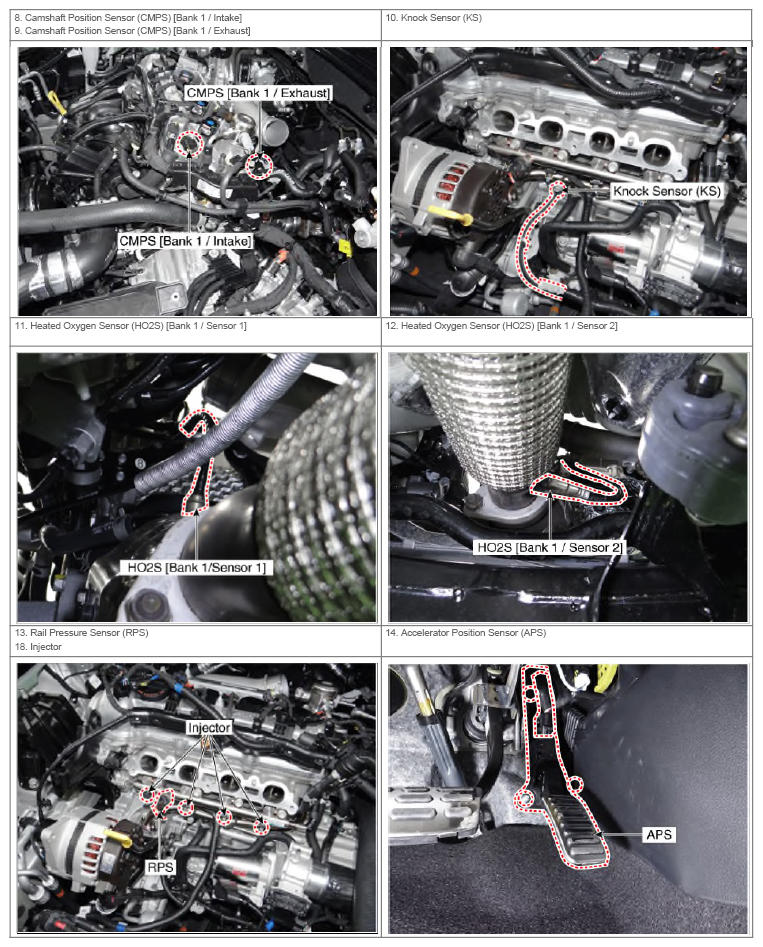

G13303772Courtesy of KIA MOTORS AMERICA, INC.

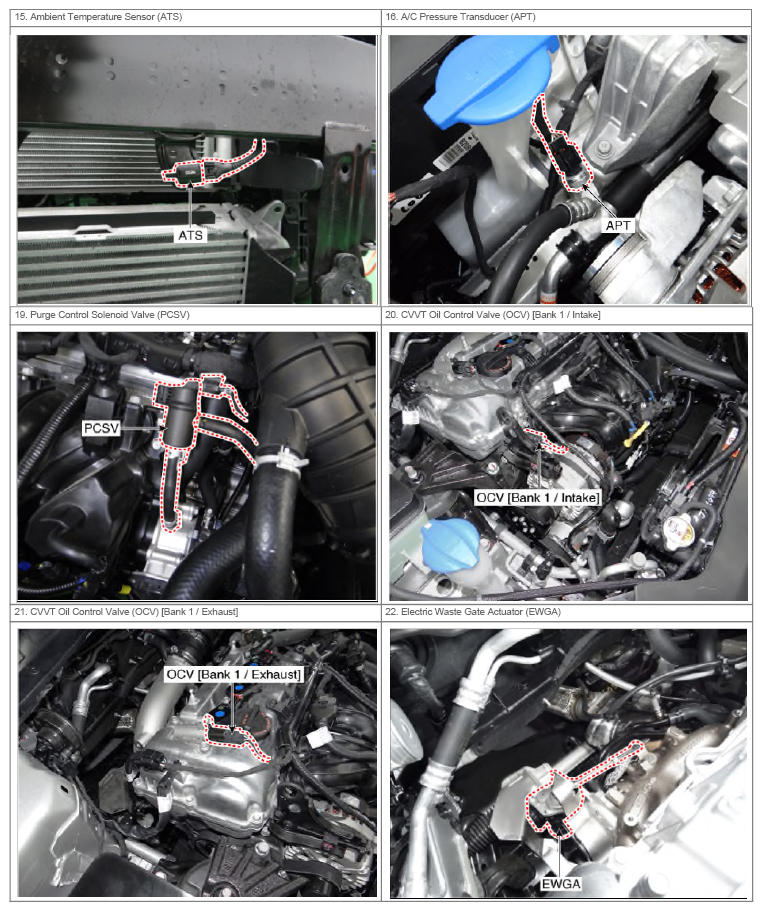

G13303773Courtesy of KIA MOTORS AMERICA, INC.

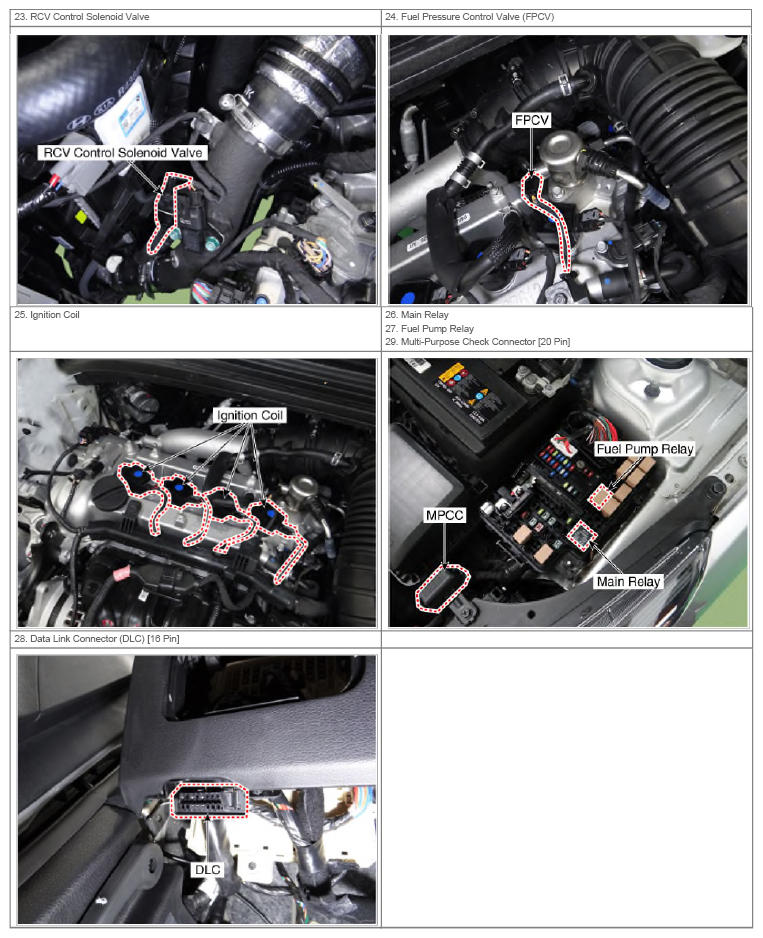

G13303774Courtesy of KIA MOTORS AMERICA, INC.
