Removal & Installation
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

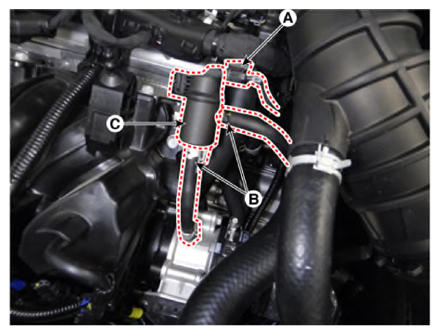

- Disconnect the purge control solenoid valve connector (A) and vapor hose (B).
- Remove the purge control solenoid valve (C).
- Install in the reverse order of removal.NOTE:
- Install the component with the specified torques.
- Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
- Use care to keep foreign material out of the valve.
