Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the canister assembly.

    (Refer to Emission Control System - "CANISTER ")

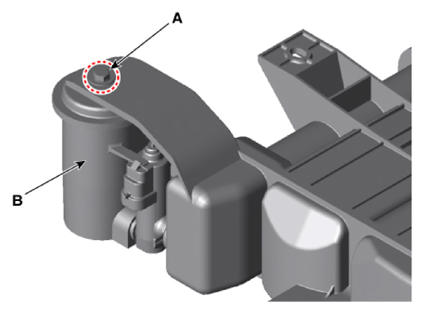

  3. Remove the installation bolt (A), and then remove the air filter (B).
    G13303871Courtesy of KIA MOTORS AMERICA, INC.

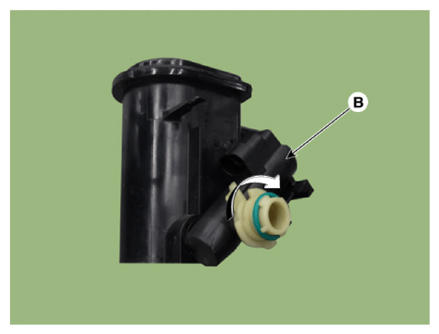

  4. Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter after rotating it in the direction of the arrow in the figure.
    G13303872Courtesy of KIA MOTORS AMERICA, INC.
    G13303873Courtesy of KIA MOTORS AMERICA, INC.
  5. Install a new fuel tank air filter in accordance with the reverse order.
