Rear Power Window Motor

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

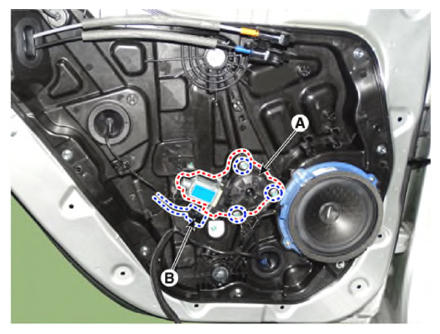

  3. Remove the rear power window motor (A) by loosening the bolts after disconnecting the connector (B).
    G13306161Courtesy of KIA MOTORS AMERICA, INC.
