Components And Components Location: Components

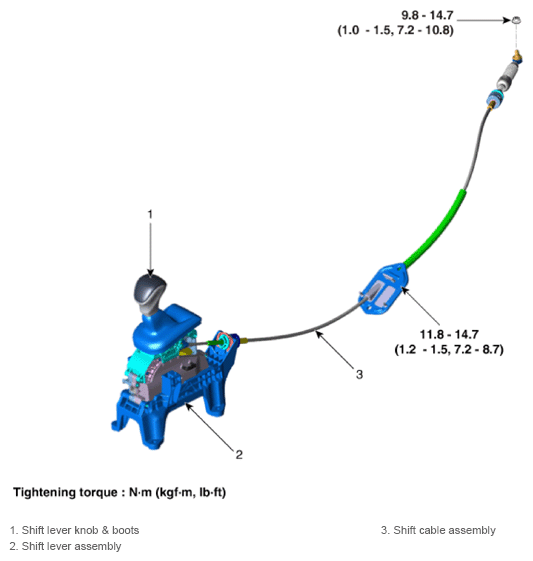

Fig 1: Shift Cable Components Location With Torque Specification
G13307386Courtesy of KIA MOTORS AMERICA, INC.
