Smart Key Status Check
Connect the VCI dongle of the KDS to the data link connector in driver side crash pad lower panel.

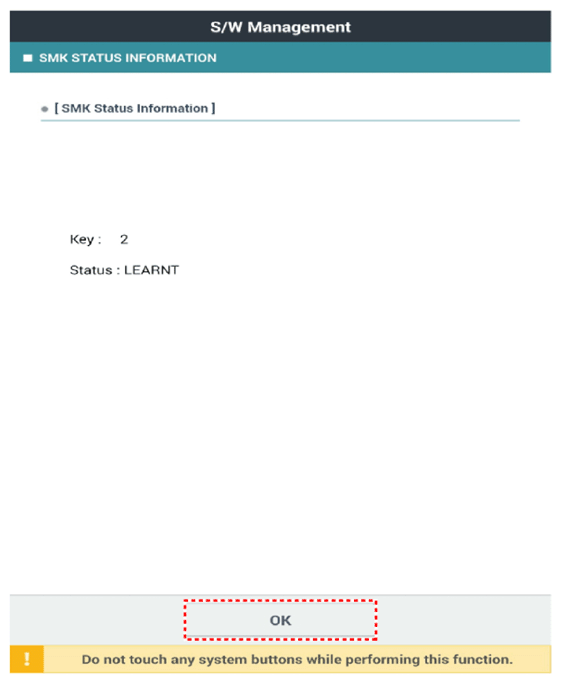

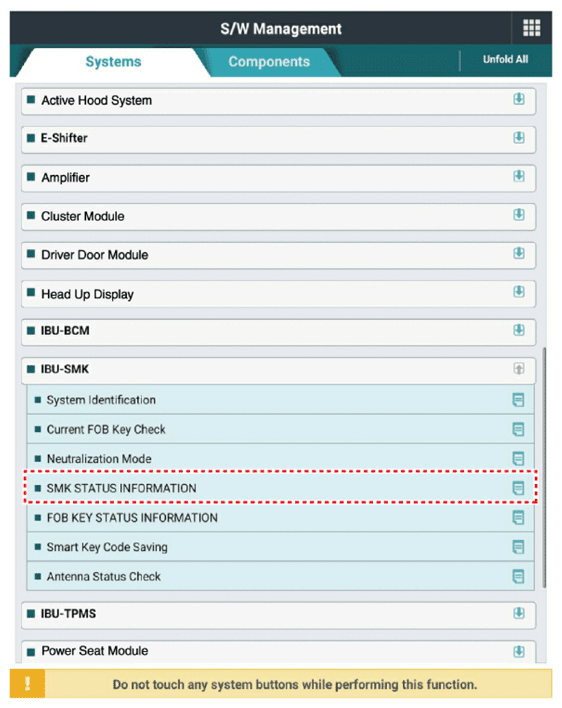

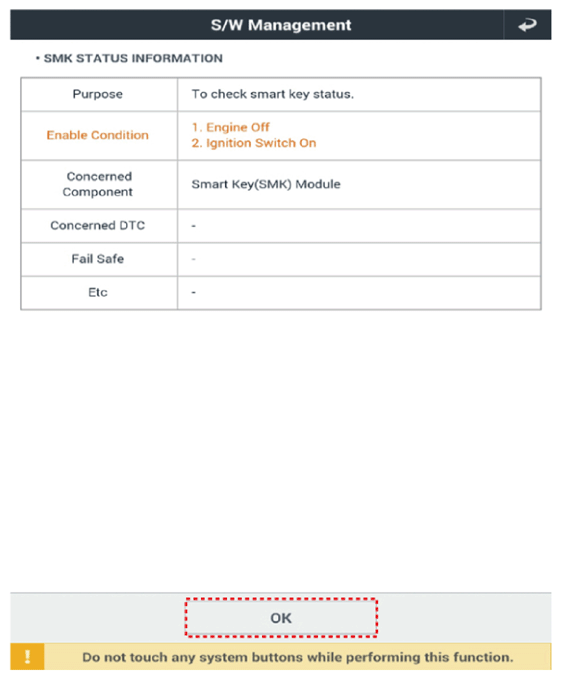

After IG ON, select the "SMK STATUS INFO".
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
