Trunk Open Switch

Disconnect the negative battery terminal.
Remove the trunk lid trim.
(Refer to " Replacement ")

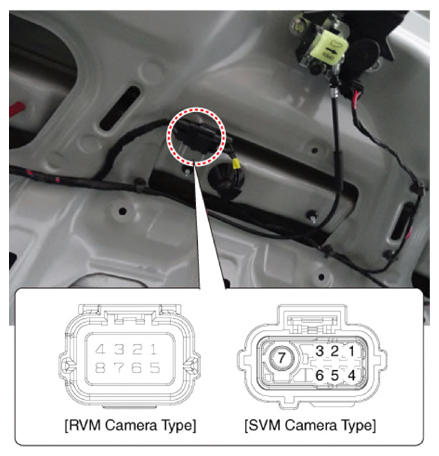

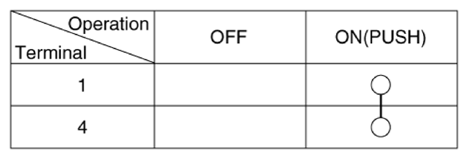

Check for continuity between the terminals.

Courtesy of KIA MOTORS AMERICA, INC.

[RVM Camera Type]

Courtesy of KIA MOTORS AMERICA, INC.

[SVM Camera Type]

Courtesy of KIA MOTORS AMERICA, INC.
