Trunk Open Switch

  1. Remove the center rear combination lamp.

    (Refer to " Removal  ")

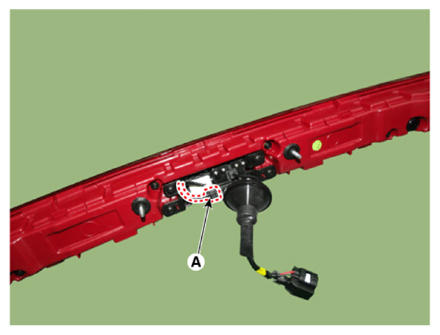

  2. Disconnect the trunk open switch connector (A).
    G13836299Courtesy of KIA MOTORS AMERICA, INC.

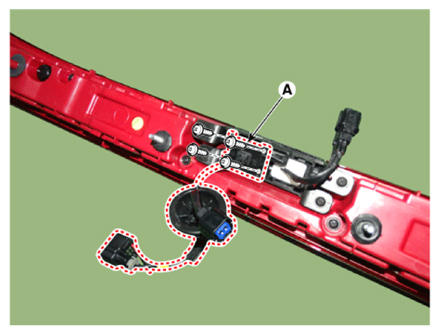

  3. Remove the rear view camera (A) by loosening the mounting screws.
    G13836300Courtesy of KIA MOTORS AMERICA, INC.

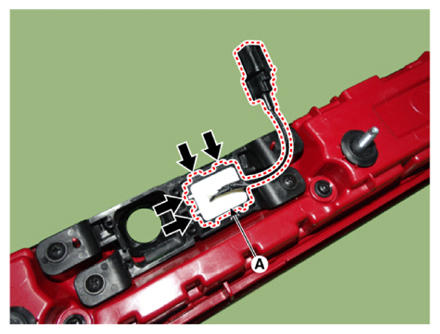

  4. Remove the trunk open switch (A) by pressing the hooks.
    G13836301Courtesy of KIA MOTORS AMERICA, INC.
