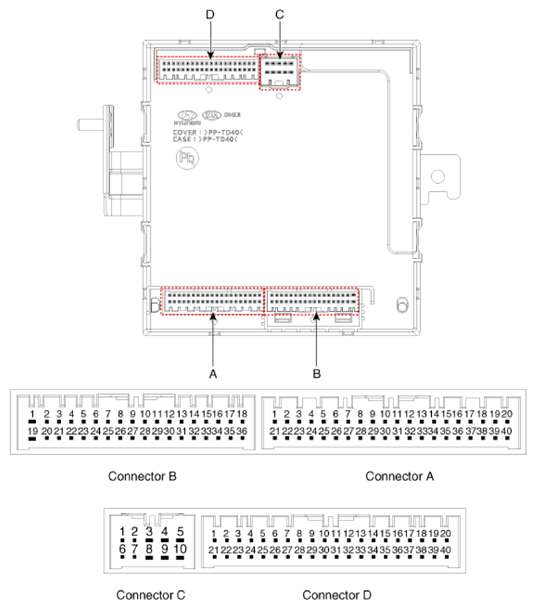

| 1 |
- |
Front washer switch (Output) |
- |
Driver outside handle switch (Input) |
| 2 |
Rear seat belt indicator Left (Output) |
- |
- |
Assist outside handle switch (Input) |
| 3 |
- |
- |
- |
- |
| 4 |
- |
- |
- |
- |
| 5 |
External buzzer (Output) |
- |
- |
RPM (Input) |
| 6 |
Rear seat belt indicator Center (Output) |
Wiper parking switch (Input) |
- |
SSB symbol illumination (+) (Output) |
| 7 |
Puddle pocket lamp (Output) |
- |
- |
ACC relay (Output) |
| 8 |
Rear seat belt indicator Right (Output) |
Brake switch (Input) |
- |
IGN1 relay (Output) |
| 9 |
- |
- |
- |
IGN2 relay (Output) |
| 10 |
Headlamp high switch (Input) |
Front wiper volume switch (Input) |
- |
Starter relay (Output) |
| 11 |
- |
- |
|
Assist outside handle antenna (+) (Output) |
| 12 |
- |
LIN4 (Safety ECU) |
Interior antenna 2 (+) (Output) |
| 13 |
Rear view switch (Input) |
PAS Option (Input) |
Trunk interior antenna 3 (+) (Output) |
| 14 |
- |
- |
Interior antenna 1 (+) (Output) |
| 15 |
RPAS Power (Output) |
B-CAN (Low) |
Bumper antenna (+) (Output) |
| 16 |
FRAS Power (Output) |
B-CAN (High) |
Driver outside handle antenna (+) (Output) |
| 17 |
PAS/RPAS Power (Input) |
- |
- |
| 18 |
- |
Ground (Power) |
- |
| 19 |
- |
- |
- |
| 20 |
Ground (ECU) |
Immobilizer power (Output) |
- |
| 21 |
- |
Immobilizer ground (Output) |
SSB switch 1 (Input) |
| 22 |
K-Line_lmmobilizer |
- |
SSB switch 2 (Input) |
| 23 |
- |
PAS/RPAS Switch indicator (Output) |
Clutch IGN lock switch |
| 24 |
- |
Front wiper switch (Input) |
- |
| 25 |
Sunroof status (Input) |
- |
|
Wheel speed sensor (Input) |
| 26 |
PAS/RPAS Switch (Input) |
Multifunction switch ground (Input) |
- |
| 27 |
ATM Solenoid (Output) |
Wiper power relay (Output) |
- |
| 28 |
LIN3 (Rain sensor) |
Auto light sensor ground (Output) |
- |
| 29 |
LIN2 (ROA) |
Auto light sensor signal (Input) |
- |
| 30 |
LIN1 (PDW-F or PDW-R) |
Auto light sensor power (Output) |
Start feed back (Input) |
| 31 |
Door unlock signal (For IFU) EMS (Output) |
- |
Assist outside handle antenna (-) (Output) |
| 32 |
Light switch (Input) |
Front wiper high relay (Output) |
Interior antenna 2 (-) (Output) |
| 33 |
Fog switch (Input) |
Front wiper low relay (Output) |
Trunk interior antenna 3 (-) (Output) |
| 34 |
IGN2 (Input) |
Front wiper lowbackup switch (Input) |
Interior antenna 1 (-) (Output) |
| 35 |
IGN1 (Input) |
P-CAN (Low) |
Bumper antenna (-) (Output) |
| 36 |
ACC (Input) |
P-CAN (High) |
Driver outside handle antenna (-) (Output) |
| 37 |
Battery + (ECU) |
|
- |
| 38 |
Battery + (Power) |
- |
| 39 |
- |
- |
| 40 |
Front heated nozzle (Output) |
'P' Position (input) |
