Smart Key Code Saving

  1. Connect the VCI II in driver side crash pad lower panel, turn the power on KDS.
  2. Select the vehicle model and then do "Smart key code saving".

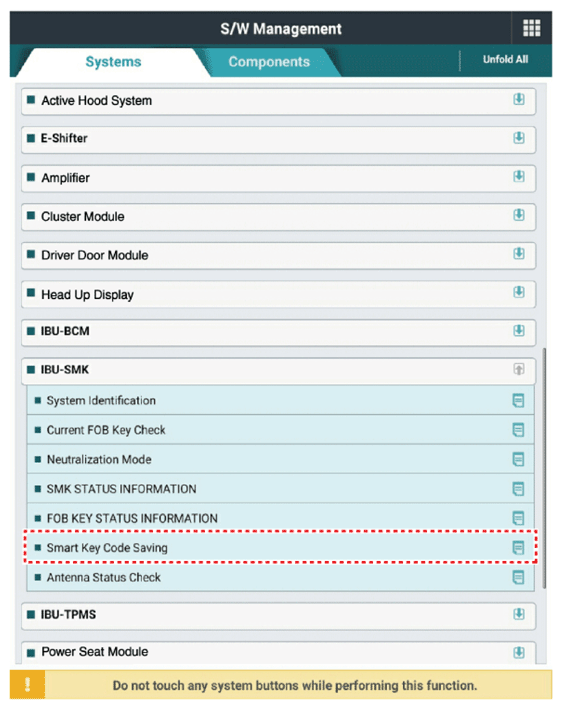

    G13836287Courtesy of KIA MOTORS AMERICA, INC.

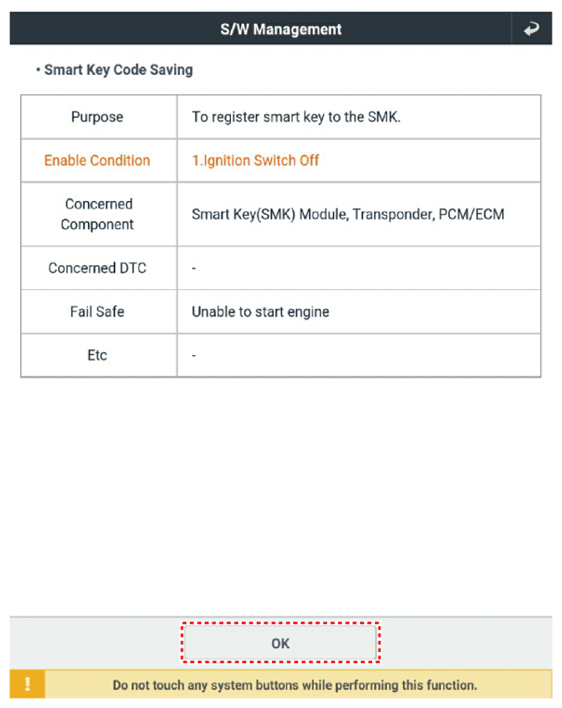

    G13836288Courtesy of KIA MOTORS AMERICA, INC.
  3. After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be as shown in the following image.

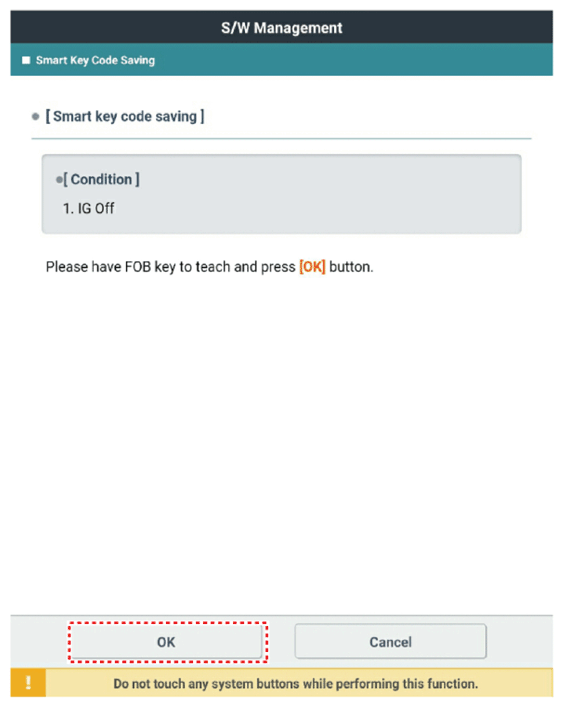

    G13836289Courtesy of KIA MOTORS AMERICA, INC.
  4. After having the teaching smart key, push "ENTER" key.
  5. Input the "Pin code" for first key teaching.

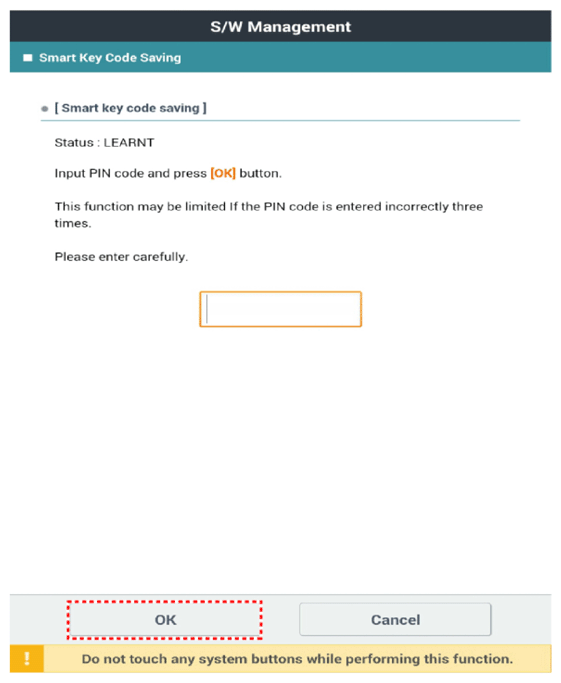

    G13836290Courtesy of KIA MOTORS AMERICA, INC.

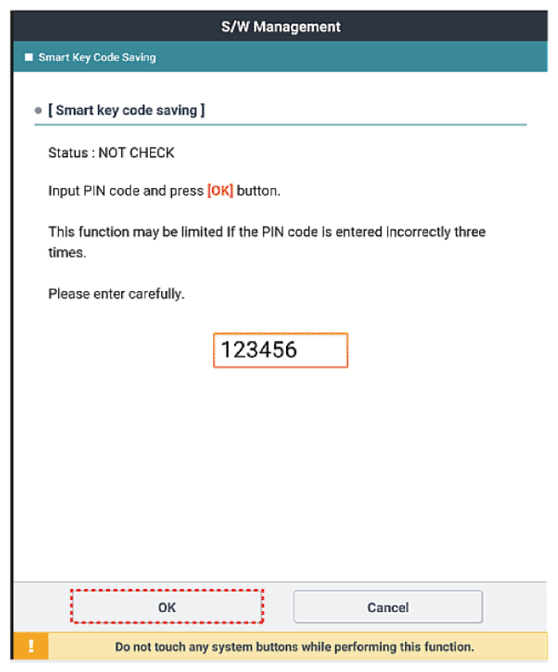

    G13836291Courtesy of KIA MOTORS AMERICA, INC.
    G13836292Courtesy of KIA MOTORS AMERICA, INC.
  6. Confirm the message "First key teaching completed".

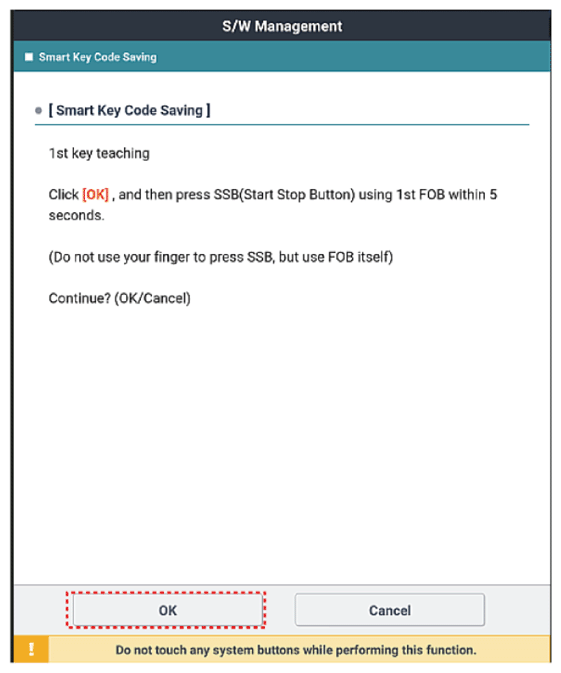

    G13836293Courtesy of KIA MOTORS AMERICA, INC.
  7. Press the SSB with smart key within 5 sec after pressing "OK".

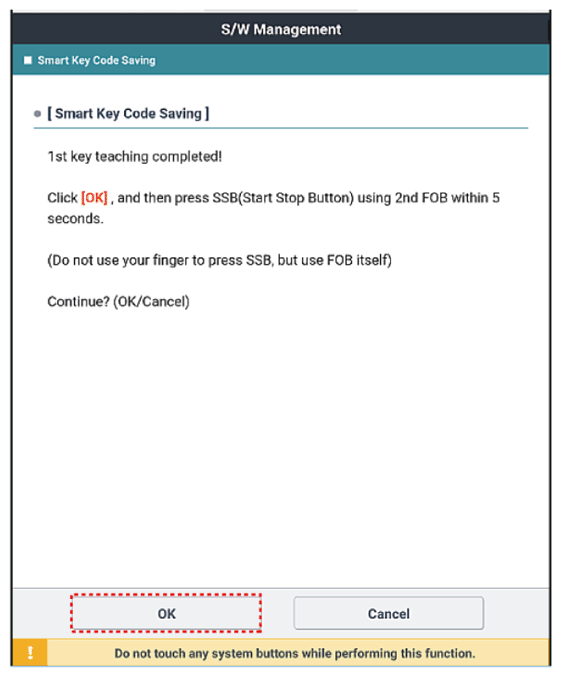

    G13836294Courtesy of KIA MOTORS AMERICA, INC.
  8. Confirm the message "Second key teaching completed".
    G13836295Courtesy of KIA MOTORS AMERICA, INC.

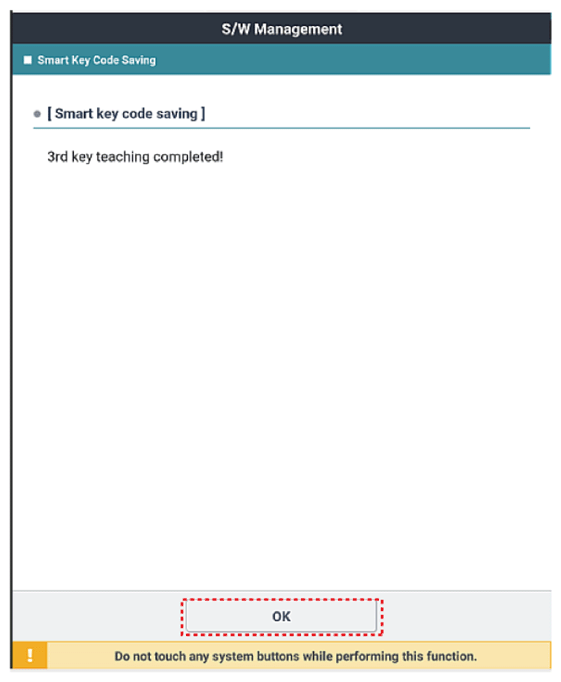

    G13836296Courtesy of KIA MOTORS AMERICA, INC.
  9. Then the screen will be as shown in the following image when key teaching process is completed.
    G13836297Courtesy of KIA MOTORS AMERICA, INC.
