Repair Procedures: Inspection

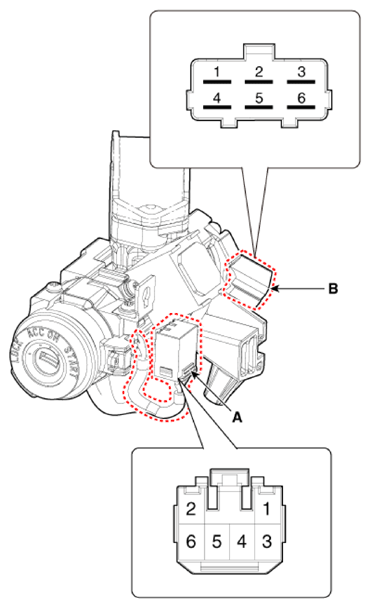

  1. Disconnect the ignition switch connector (B) and key warning switch connector (A) from under the steering column.
    G13836003Courtesy of KIA MOTORS AMERICA, INC.

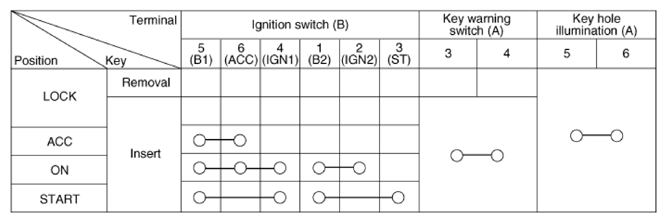

  2. Check for continuity between the terminals.
    G13836004Courtesy of KIA MOTORS AMERICA, INC.
