Repair Procedures: Removal
- Disconnect the negative battery terminal.
- Remove the steering column upper and lower shroud panel.
(Refer to " Replacement ")

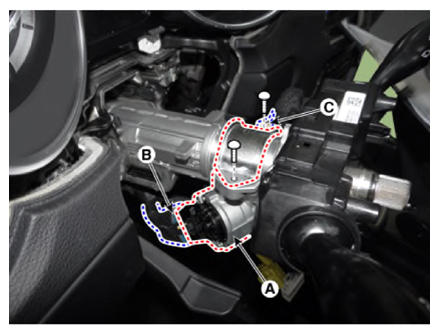

- Remove the ignition lock switch assembly (A) by loosening the bolts after disconnecting the connectors (B, C).
Tightening torque:
6.9 - 12.8 N m (0.7 - 1.3 kgf.m, 5.0 - 9.4 lb.ft)
