Front Power Window Motor

  1. Disconnect the negative battery terminal.
  2. Remove the front door trim.

    (Refer to " Replacement  ")

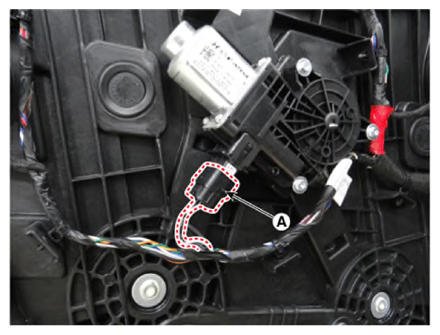

  3. Disconnect the front power window motor connector (A).
    G13836228Courtesy of KIA MOTORS AMERICA, INC.

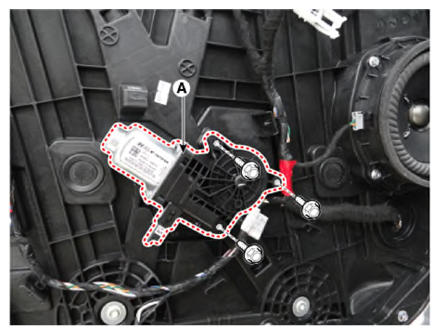

  4. Remove the front power window motor (A) after loosening the mounting bolts.
    G13836229Courtesy of KIA MOTORS AMERICA, INC.
