Power Window Sub Switch

  1. Disconnect the negative battery terminal.
  2. Remove the passenger side front door trim.

    (Refer to " Replacement  ")

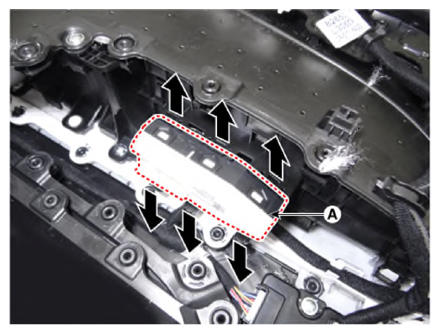

  3. Remove the power window sub switch (A) by pushing the holders in the direction of arrow.
G13836236Courtesy of KIA MOTORS AMERICA, INC.
