Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the high pressure fuel pipe.
(Refer to " Removal ")

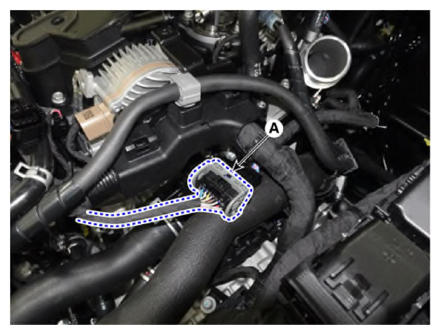

Disconnect the Continuous Variable Valve Duration (CVVD) actuator connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

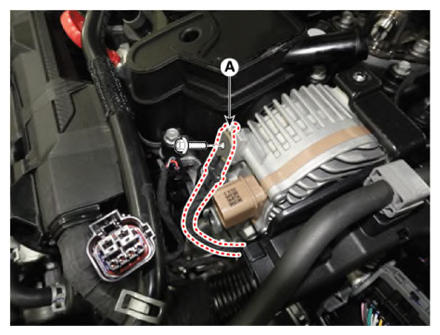

Remove the ground line (A) by removing the bolt.
Tightening torque:

7.9 - 9.8 N.m (0.8 -1.0 kgf.m, 5.8 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

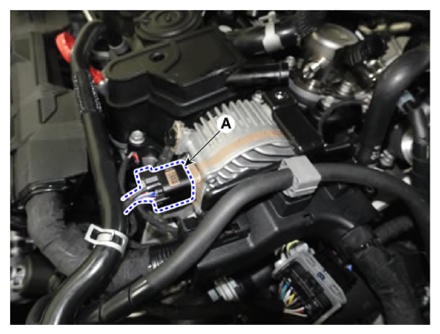

Disconnect extension wiring connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

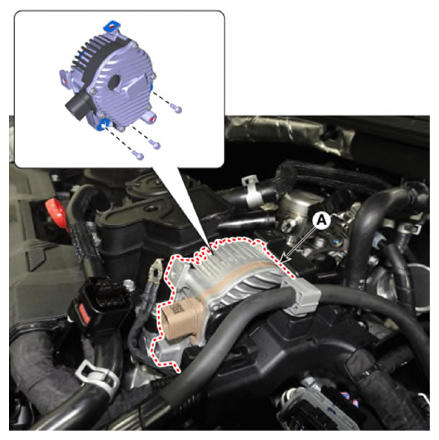

Remove the CVVD actuator (A) by removing the bolts.
Tightening torque:

19.0-24.5 N.m (1.9-2.5 kgf.m, 13.8-18.1 lb.ft)
