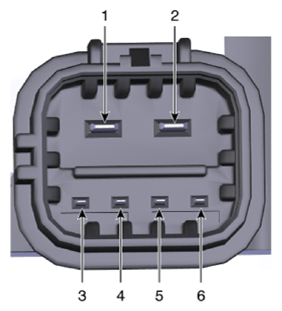

Connector And Terminal Function
Courtesy of KIA MOTORS AMERICA, INC.
Pin
Function
1
Battery power
2
Ground
3
-
4
CVVD fuse
5
CAN high
6
CAN low
Courtesy of KIA MOTORS AMERICA, INC.
