Repair Procedures: Installation

NOTE:
  • Install the camshaft position sensor within the specified torque values.
  • Note that internal damage may occur if the component is dropped. In this case, inspect the component before installation.

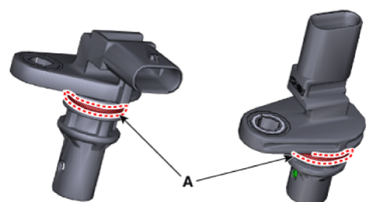

  • Apply the engine oil to the O-ring (A).
    G13833877Courtesy of KIA MOTORS AMERICA, INC.
  1. Install in the reverse order of removal.
