Repair Procedures: Removal
CAUTION:
Do not remove the camshaft position sensor while the engine the running or right after the engine stops, or a scald by the flow out engine oil may occur.
- Disconnect the negative (-) battery terminal.

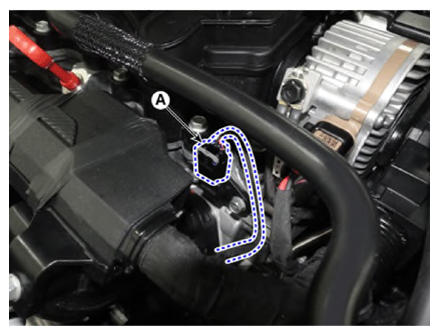

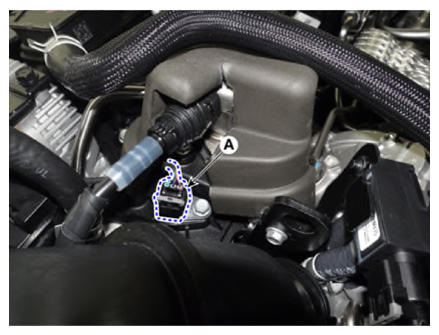

- Disconnect the Camshaft Position Sensor (CMPS) connector (A).
[Intake]
 Courtesy of KIA MOTORS AMERICA, INC.
|
[Exhaust]
 Courtesy of KIA MOTORS AMERICA, INC.
|

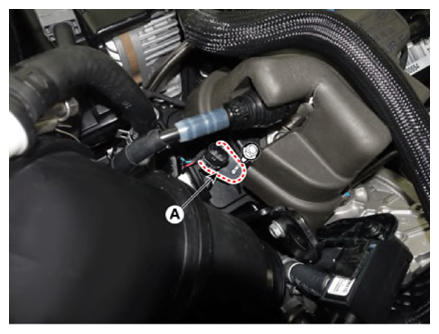

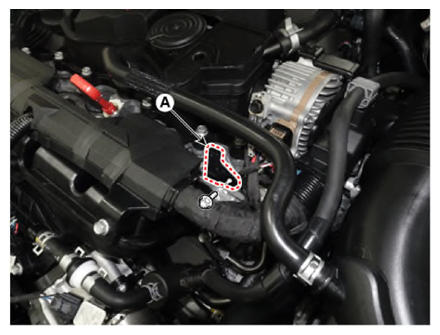

- Remove the CMPS (A) by removing the mounting bolt.
Tightening torque:
9.8 -11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
[Intake]
 Courtesy of KIA MOTORS AMERICA, INC.
|
[Exhaust]
 Courtesy of KIA MOTORS AMERICA, INC.
|
