Repair Procedures: Removal

Disconnect the negative (-) battery terminal.

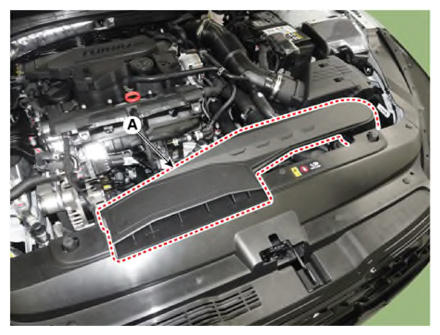

Remove the air duct (A).

Courtesy of KIA MOTORS AMERICA, INC.

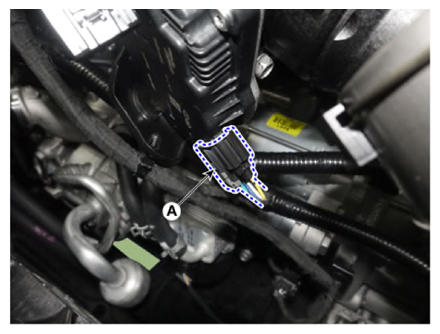

Disconnect the boost pressure sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

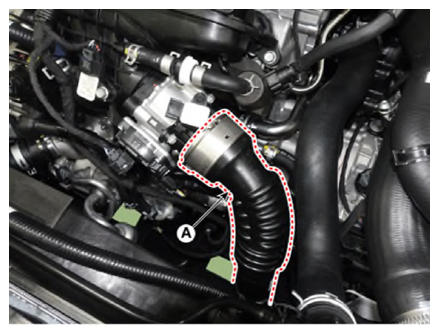

Separate the intake hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

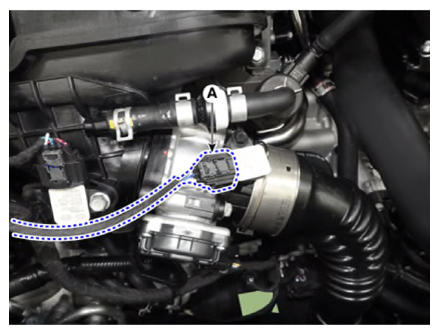

Disconnect the ETC module connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

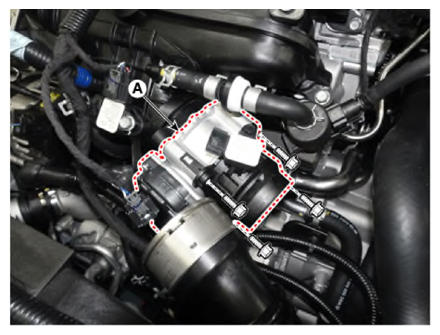

Remove the ETC module (A) after removing the mounting bolts.
Tightening torque:

9.8 -11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
