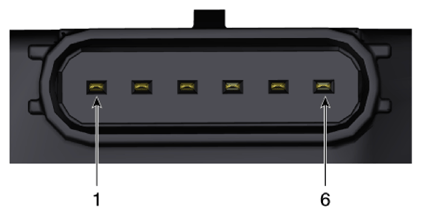

Connector And Terminal Function
Courtesy of KIA MOTORS AMERICA, INC.
Pin
Function
1
Motor (+)
2
Motor (-)
3
5V
4
TPS 2
5
Ground
6
TPS 1
Courtesy of KIA MOTORS AMERICA, INC.
