Engine Coolant Temperature Sensor (ECTS) #2

Remove the alternator.
(Refer to " Removal ")

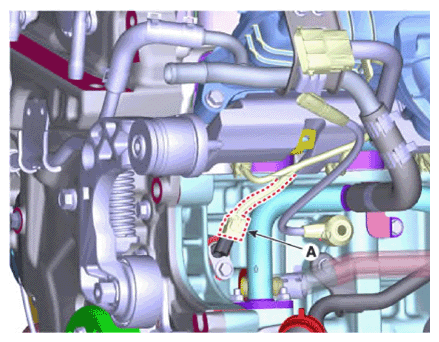

Disconnect the engine coolant temperature sensor (ECTS) #2 connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

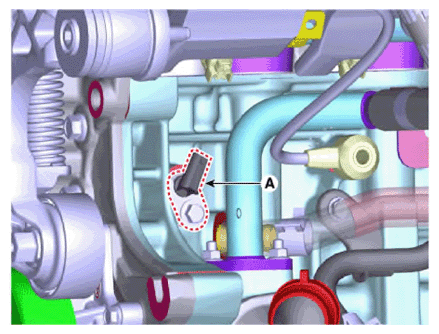

Remove the ECTS #2 (A) after removing the mounting bolt.
Tightening torque:

9.8 -11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
