Components Location

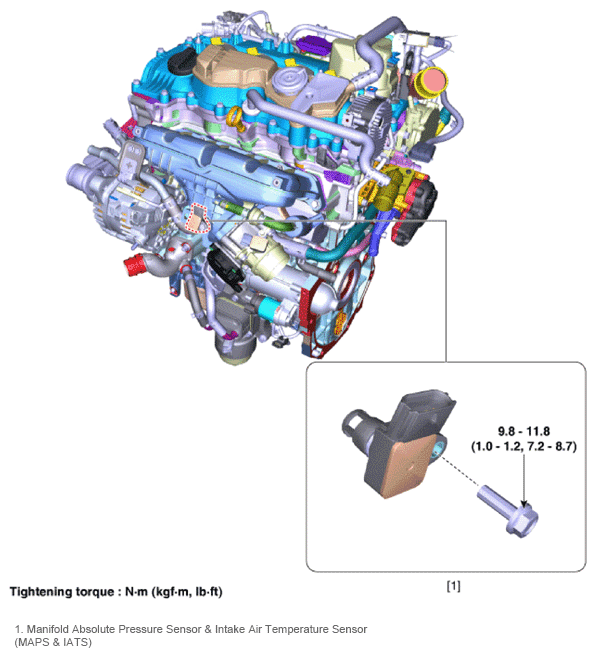

Fig 1: Manifold Absolute Pressure And Intake Air Temperature Sensor Components Location With Torque Specification
G13833975Courtesy of KIA MOTORS AMERICA, INC.
