Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

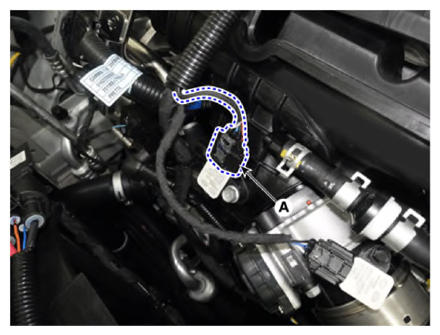

  2. Disconnect the MAPS and IATS connector (A).
    G13833978Courtesy of KIA MOTORS AMERICA, INC.

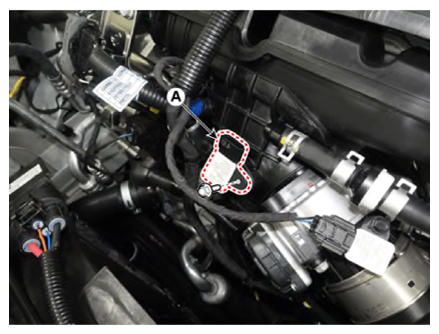

  3. Remove the MAPS and IATS (A) after removing the mounting bolt.

    Tightening torque:

    9.8 -11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13833979Courtesy of KIA MOTORS AMERICA, INC.
