Components Location

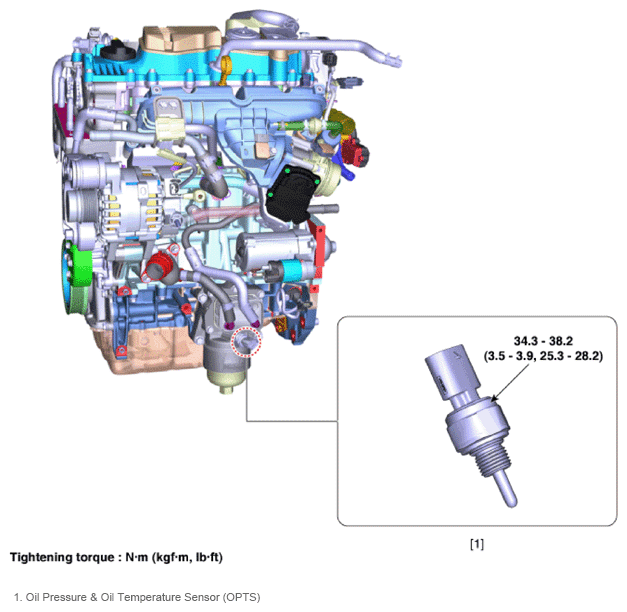

Fig 1: Oil Pressure And Oil Temperature Sensor Components Location With Torque Specification
G13833980Courtesy of KIA MOTORS AMERICA, INC.
