Repair Procedures: Installation

  1. Install in the reverse order of removal.

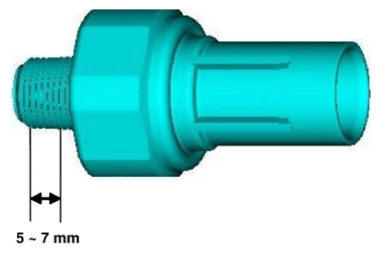

    NOTE: When installing the oil pressure switch, apply sealant to the thread.
    Specified sealant  : TB 2403
    Thickness  : 0.2 - 0.4 mm (0.008 - 0.016 in.)
    G13833984Courtesy of KIA MOTORS AMERICA, INC.
