Repair Procedures: Removal
- Disconnect the negative (-) battery terminal
- Remove the engine room under cover.
(Refer to " Removal And Installation ")

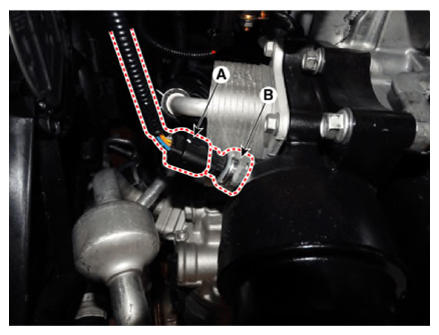

- After disconnecting the connector (A), remove the oil pressure and temperature sensor (B).
Tightening torque:
34.3 - 38.2 N.m (3.5 - 3.9 kgf.m, 25.3 - 28.2 lb.ft)
