Repair Procedures: Installation

NOTE:
  • Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
  • Note below cautions when installing variable force solenoid (VFS) valve.

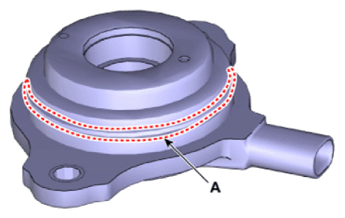

  • Apply engine oil on new O-ring (A).
    G13833993Courtesy of KIA MOTORS AMERICA, INC.
  1. Install in the reverse order of removal.
