Connector Assembly Status Test

  1. Disconnect the negative (-) battery terminal.
  2. Remove the air cleaner assembly.

    (Refer to " Removal and Installation  ")

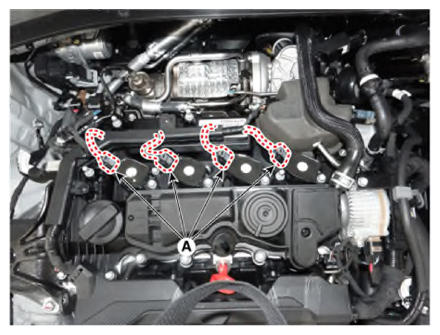

  3. Remove the connector (A) and reinstall it.
    G13833658Courtesy of KIA MOTORS AMERICA, INC.

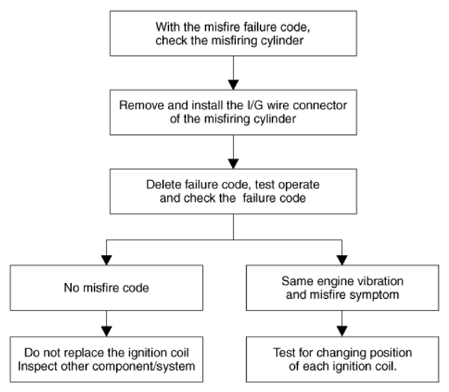

    G13833659Courtesy of KIA MOTORS AMERICA, INC.
