Repair Procedures: Removal
- Remove the ignition coil.
(Refer to " Removal ")

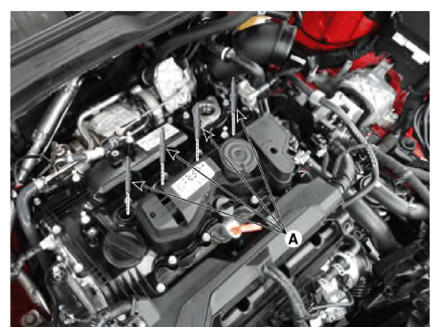

- Remove the spark plug (A) by using a spark plug wrench.
Tightening torque:
14.7-24.5 N.m (1.5-2.5 kgf-m, 10.9 -18.0 lb.ft)
NOTE: Be careful that no contaminates enter into spark plug holes.
