Repair Procedures: Replacement
CAUTION:
- When installing the belt, make sure not to damage the retractor.
- Put on gloves to prevent hand injuries.
- Remove the front seat assembly.
(Refer to " Replacement ")
- Separate the front seat belt buckle wiring (A).

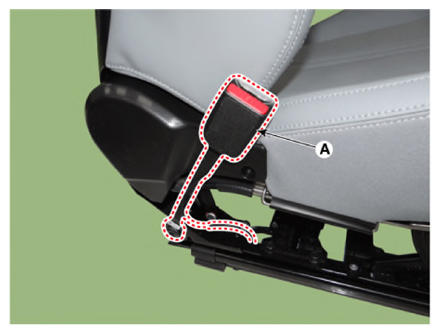

- Loosen the mounting bolt and remove the front seat belt buckle (A).
Tightening torque:
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)
- Install in the reverse order of removal.
Information
- Make sure that the connectors are connected completely
- Replace any damaged clips (or pin-type retainers).
