Repair Procedures: Replacement

Remove the front seat belt retractor.
(Refer to " Replacement ")

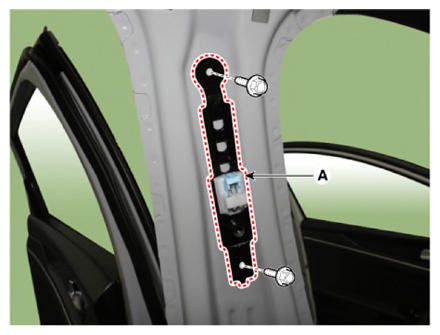

Loosen the mounting bolts, remove the height adjust (A).
Tightening torque:

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
