Occupant Classification Sensor (OCS) Unit

  1. Disconnect the battery negative battery.
    NOTE: After disconnecting the cables, wait at least 3 minutes.
  2. Remove the passenger front seat assembly.

    (Refer to " Replacement  ")

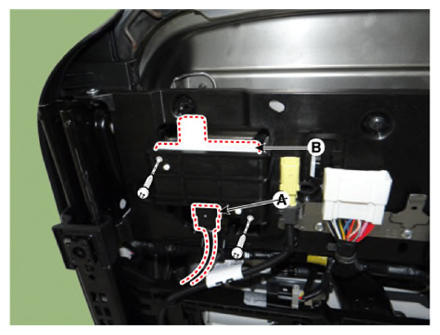

  3. Remove the occupant classification sensor (B) by loosening the mounting screws after disconnecting the connector (A).
    G13835101Courtesy of KIA MOTORS AMERICA, INC.
