Off-Line On KDS

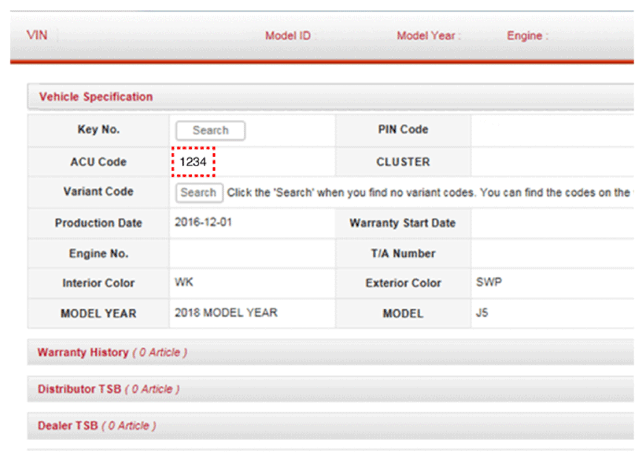

  1. Confirm the ACU variant coding code from the KDS server after inputting the VIN to the KDS sever.
    G13835093Courtesy of KIA MOTORS AMERICA, INC.
  2. Ignition "OFF", and connect KDS.
  3. With ignition "ON" and Engine "OFF", select vehicle name and airbag system.
  4. Select Variant coding mode.

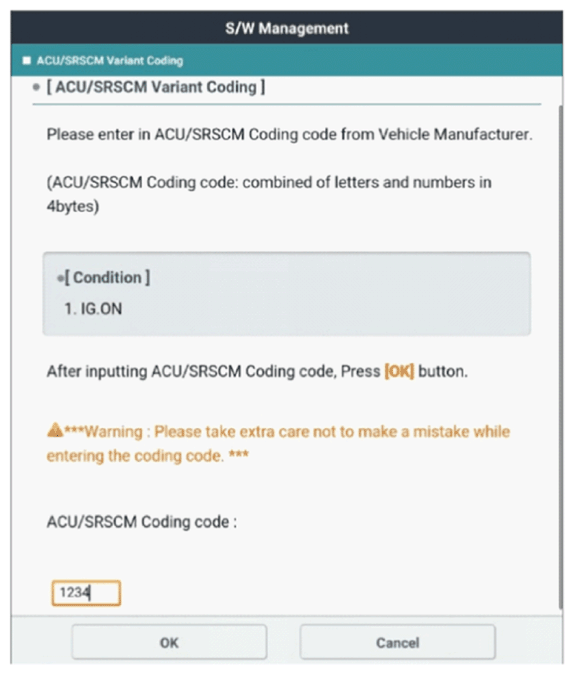

  5. Input the ACU coding code.
    G13835094Courtesy of KIA MOTORS AMERICA, INC.
