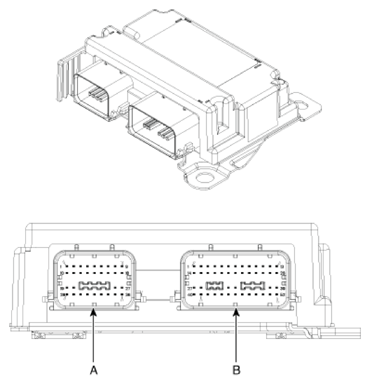

Supplemental Restraint System Control Module (SRSCM)

Courtesy of KIA MOTORS AMERICA, INC.

No	Connector A	Connector B
1	Driver airbag #1 (High)	-
2	Driver airbag #2 (Low)	-
3	Passenger airbag #2 (Low)	-
4	Passenger airbag #2 (High)	Driver rear side airbag (Low)
5	-	Driver rear side airbag (High)
6	-	Passenger rear side airbag (High)
7	-	Passenger rear side airbag (Low)
8	-	-
9	-	-
10	B+	-
11	Crash output	-
12	Passenger airbag #1 (Low)	-
13	Passenger airbag #1 (High)	-
14	Driver knee airbag (High)	-
15	Driver knee airbag (Low)	Passenger seat belt buckle sensor (High)
16	Passenger airbag OFF Lamp (Telltale)	Driver seat belt buckle sensor (High)
17	-	Passenger curtain airbag (Low)
18	-	Passenger curtain airbag (High)
19	Driver airbag #1 (High)	Driver curtain airbag (High)
20	Driver airbag #1 (Low)	Driver curtain airbag (Low)
21	-	Passenger side airbag (Low)
22	-	Passenger side airbag (High)
23	-	Driver side airbag (High)
24	-	Driver side airbag (Low)
25	-	-
26	C-CAN (Low)	-
27	C-CAN (High)	Driver seat belt pretensioner (Low)
28	IGN 1	Driver seat belt pretensioner (High)
29	Driver front impact sensor (High)	-
30	Driver front impact sensor (Low)	-
31	Passenger front impact sensor (Low)	-
32	Passenger front impact sensor (High)	Passenger seat belt pretensioner (High)
33	-	Passenger seat belt pretensioner (Low)
34	-	-
35	P-CAN (Low)	-
36	P-CAN (High))	-
37		-
38		-
39		-
40		Ground
41		-
42		-
43		Driver pressure side impact sensor (High)
44		Driver pressure side impact sensor (Low)
45		Passenger pressure side impact sensor (Low)
46		Passenger pressure side impact sensor (High)
47		Driver gravity side impact sensor (High)
48		Driver gravity side impact sensor (Low)
49		Passenger gravity side impact sensor (Low)
50		Passenger gravity side impact sensor (High)
51		-
52		-
