Repair Procedures: Removal

Align the front wheels facing straight ahead by turning steering wheel.
NOTE: If the steering wheel and the front tires does not synchronize to their centers together, open circuit on the clock spring cable may occur due to excessive steering wheel turning.
Disconnect the battery (-) terminal.
Remove the driver airbag module.
(Refer to " Removal ")

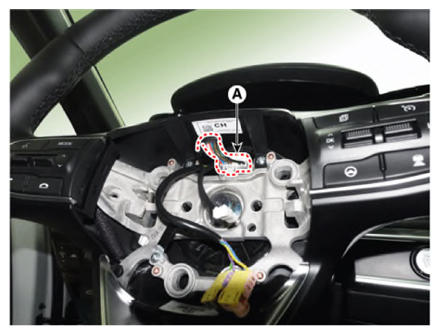

Disconnect the steering wheel connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

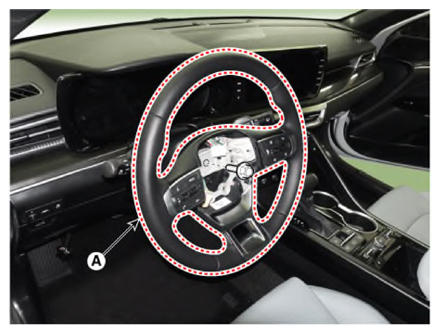

Remove the steering wheel (A) after loosening the lock bolt.
Tightening torque:

39.2 - 49.0 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Do not use the hammer for disconnecting on the steering column not to damage the steering column.
- Do not reuse the bolt.
