Front Wheel Alignment: Camber
Camber: -0.5° ± 0.5°
When the wheel tilts out at the top, then the camber is positive (+).
When the wheel tilts in at the top, then the camber is negative (-).
Camber and Caster are pre-set at the factory, so they do not need to be adjusted. If the camber and caster are not within the standard value, replace or repair the damaged parts and then inspect again.

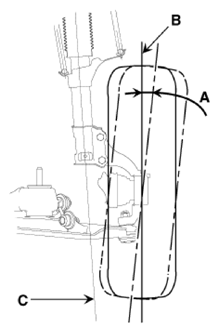

| ITEM | Description |
|---|---|
| A | Positive camber angle |
| B | True vertical |
| C | Strut centerline |
