Repair Procedures: Installation

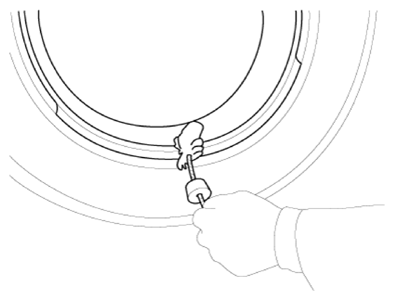

  1. Apply tire soap or lubrication to the top and bottom tire beads.
    G13834907Courtesy of KIA MOTORS AMERICA, INC.

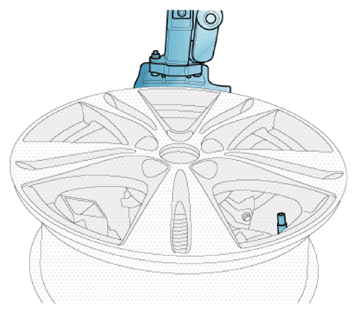

  2. To fit the bottom bead, position the valve at the 5 o'clock position relative to the head on the tire changing machine.
    G13834908Courtesy of KIA MOTORS AMERICA, INC.

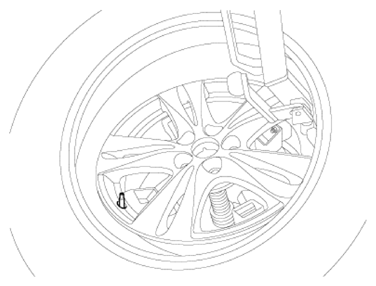

  3. Place the tire on the rim so the bottom bead touches the edge of the rim after the valve (6 o'clock). Rotate the rim clockwise, and push down on the tire at the 3 o'clock position to fit bottom bead.
    G13834909Courtesy of KIA MOTORS AMERICA, INC.

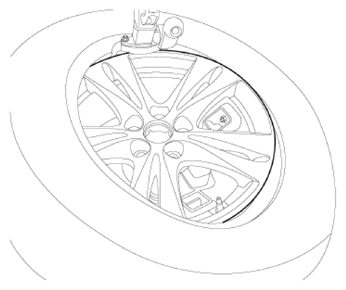

  4. After bottom bead is on tire, rotate the rim until the valve is at the 5 o'clock position relative to the head on the tire changing machine. Push down on the tire at the 3 o'clock position and rotate the rim clockwise to fit the top bead.
    G13834910Courtesy of KIA MOTORS AMERICA, INC.
  5. Inflate the tire until both beads seat.
