Run Out Inspection

  1. Jack up the vehicle.

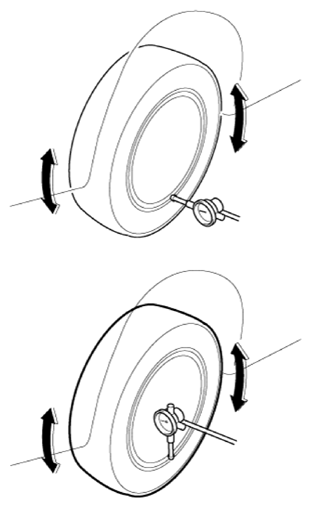

  2. Measure the wheel Run-out by using a dial indicator as in illustration below.
    Run-out Aluminum
    Radial mm (in.) Below 0.3 (0.0118)
    Radial mm (in.) Below 0.3 (0.0118)
  3. If measured value exceeds the standard value, replace the wheel.
    G13834917Courtesy of KIA MOTORS AMERICA, INC.
