Repair Procedures: Replacement

Remove the under cover.
(Refer to " Removal And Installation ")

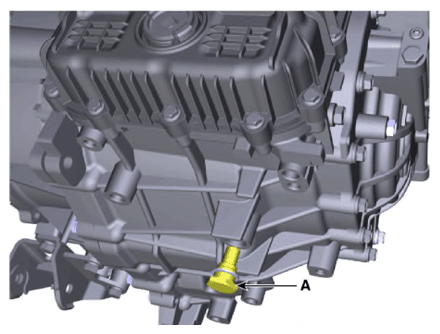

Remove the ATF drain plug (A), allow the fluid to drain out and then reinstall the drain plug.
Tightening torque:

33.3 - 43.1 N.m (3.4 - 4.4 kgf.m, 24.6 - 31.8 lbft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The existing ATF drain plug gasket must be replaced with a new one (do not reuse).
Install the air cleaner assembly.
(Refer to " Removal And Installation ")

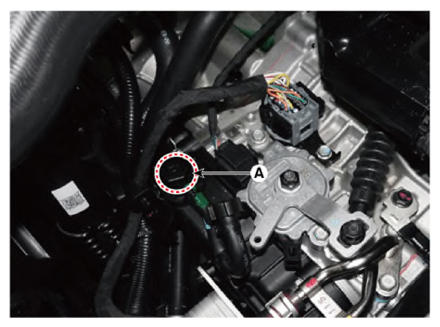

Remove the eyebolt (A).

Courtesy of KIA MOTORS AMERICA, INC.
Fill the automatic transaxle with about 5.0 I of ATF SP4M-1 through the ATF filler hole.
Perform the ATF level check procedure.
(Refer to " Automatic Transaxle Fluid (ATF) Level Check ")
